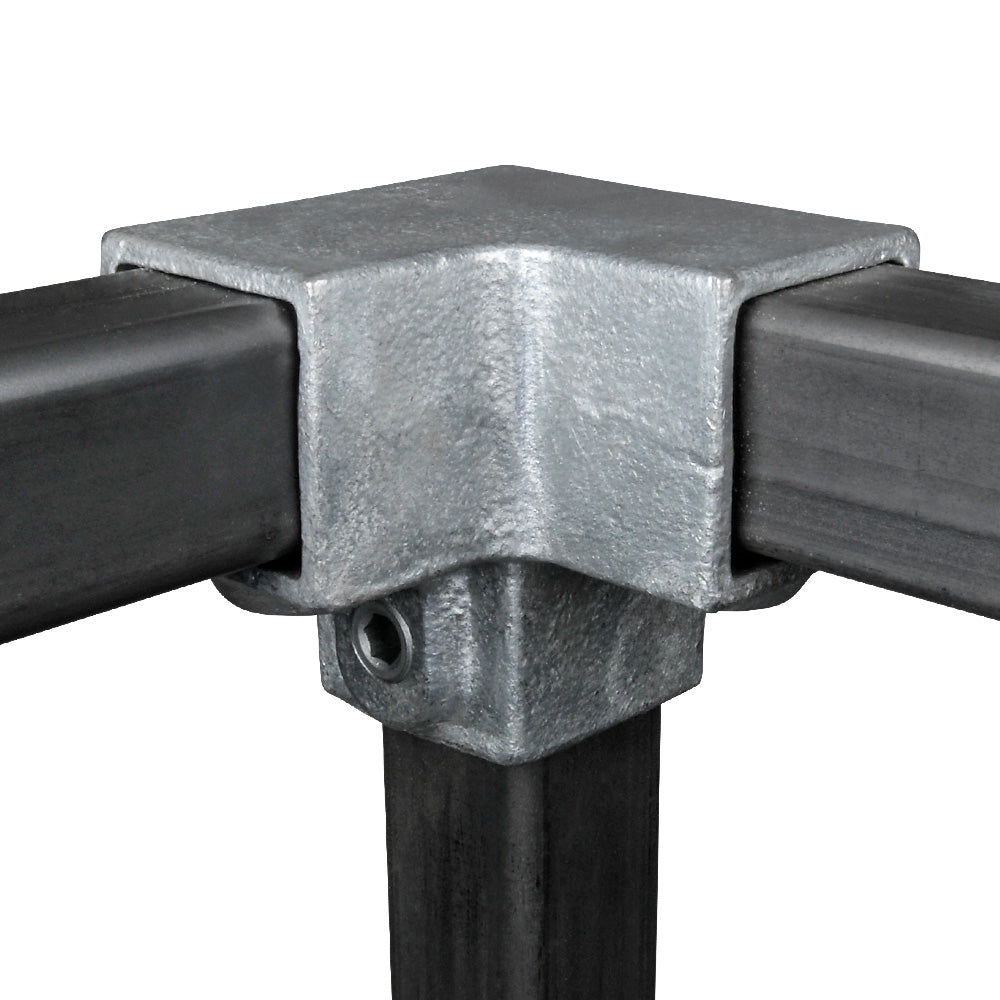

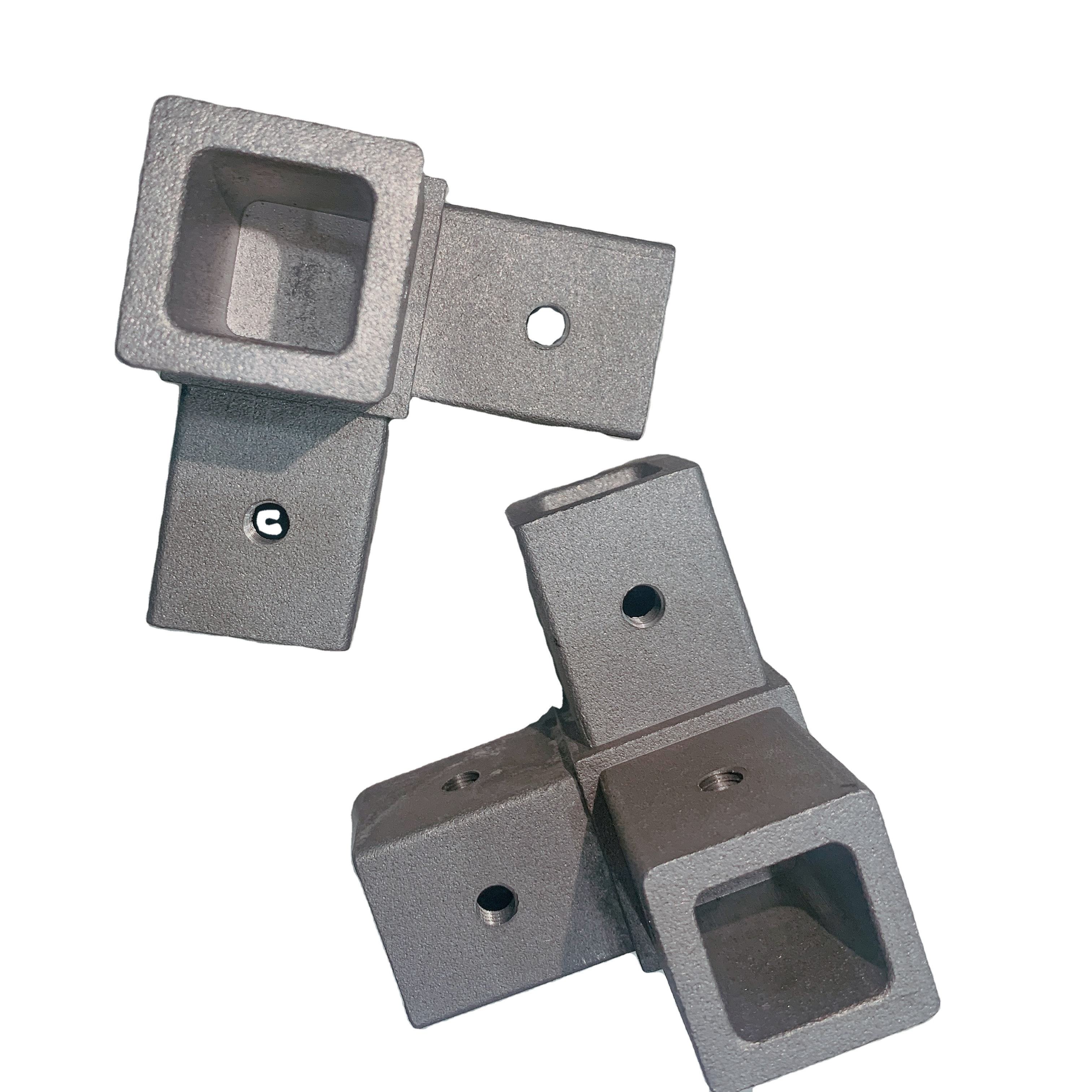

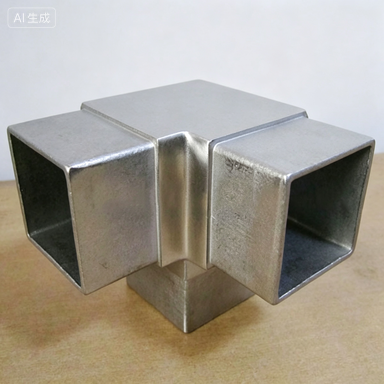

Die Cast Aluminum Square Tube Connector 3 Way Corner Bracket Joint 90 Degree L Shape Heavy Duty Electrical Cabinet Frame
The 3 Way Aluminum Square Tube Connector features a rugged die-cast aluminum structure, providing excellent mechanical strength while maintaining lightweight performance. The precision-machined threaded holes allow secure fastening, while the clean casting finish delivers a professional appearance and long service life.
Keywords:
Aluminum Tube Connector, 3 Way Corner Bracket
Category:
Aluminum Die-Casting Series
Hotline:
Detailed information
1.Product Overview
Elevate your structural integrity with our premium Die Cast Aluminum Square Tube Connector, meticulously engineered for robust and reliable connections. This versatile 3-way, 90-degree corner bracket is an essential component for constructing heavy-duty electrical cabinets, automation frames, marine enclosures, and various industrial support systems. Crafted from high-strength ADC12 grade aluminum, it offers exceptional corrosion resistance and durability, ensuring long-lasting performance in demanding environments.
2.Technical Specifications
| Attribute | Detail |
|---|---|
| Product Name | Die Cast Aluminum Square Tube Connector 3 Way Corner Bracket Joint |
| Place of Origin | Liaoning, China |
| Brand Name | OEM/ODM |
| Model Number | Custom |
| Material | Aluminum (ADC12 Grade) |
| Color | Customized Color |
| Size | Customized Size / Client’s Drawings |
| Certification | ISO 9001, RoHS, REACH |
| Precision Fit | Seamless 3-way 90° assembly |
| Load Capacity | Engineered for maximum load capacity |
| Grade | Industrial Grade, Rugged design for cabinet bases |
| Finishing | Sand-cast finish / Clean casting |
| Threading | Precision threading |
| Tolerance | ±0.1mm |
| Service | OEM, ODM, Customised |
3.Applications
This robust connector is ideal for a variety of structural applications, including but not limited to:
•Electrical Cabinets: Providing secure and stable corner joints for cabinet frames.
•Automation Frames: Essential for building rigid and precise automation equipment structures.
•Marine Enclosures: Corrosion-resistant properties make it suitable for harsh marine environments.
•Industrial Enclosure Base Foot Support: Offers vibration-proof support for heavy industrial machinery.
•Standard Enclosure Systems: Fully compatible with popular systems like Rittal, ensuring broad usability.
Certifications & Compliance
ISO 9001:2015: Quality Management System
RoHS Compliance: Restriction of Hazardous Substances
REACH Compliance: European Chemical Safety Regulation
FAQ
1. What manufacturing services does Jinda Industry provide?
Jinda Industry is a professional custom manufacturing supplier in China, providing one-stop OEM and ODM solutions for global customers. Our manufacturing capabilities include aluminum die casting parts, CNC machining parts, sheet metal fabrication, metal stamping parts, injection molding components, and custom industrial parts manufacturing. From product design and mold development to mass production and final delivery, we help customers complete projects with efficient and reliable manufacturing solutions.
2. Can Jinda Industry manufacture products according to drawings or samples?
Yes, Jinda Industry specializes in custom parts manufacturing based on customer drawings, 3D files, samples, or technical specifications. Our engineering team can evaluate your product requirements and recommend the most suitable manufacturing process, including die casting, CNC machining, stamping, sheet metal fabrication, and injection molding. We support customers from prototype development to full-scale production, ensuring optimized design, stable quality, and competitive manufacturing costs.
3. Why choose Jinda Industry as your OEM manufacturing partner?
Jinda Industry provides reliable OEM and ODM manufacturing services with strong engineering support, advanced production capabilities, and strict quality control systems. As an experienced China manufacturer, we help customers reduce development costs, improve production efficiency, and achieve consistent product quality. Our one-stop manufacturing solution allows customers to manage design, tooling, production, finishing, and delivery through one trusted supplier.
4. How does Jinda Industry ensure product quality?
Quality control is integrated into every stage of our manufacturing process. Jinda Industry performs strict inspections including raw material verification, production process monitoring, dimensional inspection, surface finish inspection, and final product inspection before shipment. Our quality management system ensures that every custom metal part, die casting component, and precision machining part meets customer specifications and international requirements.
